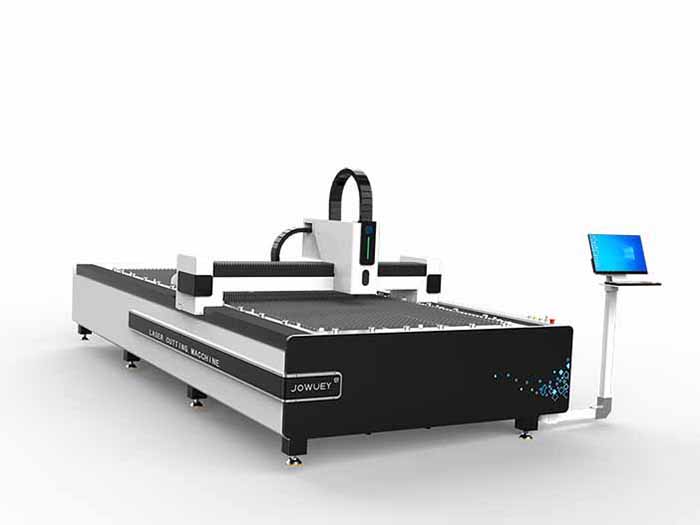

Different design and different working area metal sheet laser cutting machine is a basic tool in the metalworking industry. It is easy to cut more than 25mm thickness mild steel in a few seconds, the working area of fiber laser cutting machine from 1.5m wide to 2.56m wide, length from 3meter to 8 meters for choice.
Features
01
Ultra-High Power Cutting Head With Intelligent Control System
02
Used for cutting a variety of metal plates
03
Independent laser power supply to avoid high voltage interference
04
High accurate positioning
Parameters
Model | JW-3015-M7 |
Laser type | Fiber laser |
Laser working medium | Fiber |
Laser wavelength | 1070-1090nm |
Rated output power | 1000w |
Output fiber core diameter | 50 |
X AXIS | 1500mm |
Y AXIS | 3000mm |
ZAXIS | 150mm |
positioning accuracy | ±0.03mm/m |
Repeat positioning accuracy | ±0.02mm/m |
Machine size | 3980*2230*1720 |
Voltage | 220V 50Hz |
Machine power | 9.1kw |
Application
Used for cutting a variety of metal plates, mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.
Floor Plan
