JW6060 6090 1390
This small fiber laser cutter uses ball screw transmission, with high precision. It's is the best choice for making small metal parts, metal ornament designing and so on. With the compact mechanical structure, it has a small footprint and is very suitable for home use. Although the machine is small, its processing performance is recognized by many customers. The machine adopts high-end laser source, laser head, motor, transmission device and intelligent control system and is very easy to operate.
Features
Mini high precision fiber laser cutting machine
01
Small footprint and is very suitable for home use
02
Ball screw transmission with high accuracy
03
With covered design, visual operation interface
04
Very cost-effective
Parameters
Model | JW6060-M7 |
Laser type | Fiber laser |
Laser working medium | Fiber |
Laser wavelength | 1070-1090nm |
Rated output power | 1000w |
Output fiber core diameter | 50 |
X AXIS | 600mm |
Y AXIS | 600mm |
ZAXIS | 150mm |
positioning accuracy | ±0.03mm/m |
Repeat positioning accuracy | ±0.02mm/m |
Machine size | 1980*1930*1440 |
Voltage | 220V or 380V 50Hz |
Machine power | 9.1kw |
Application

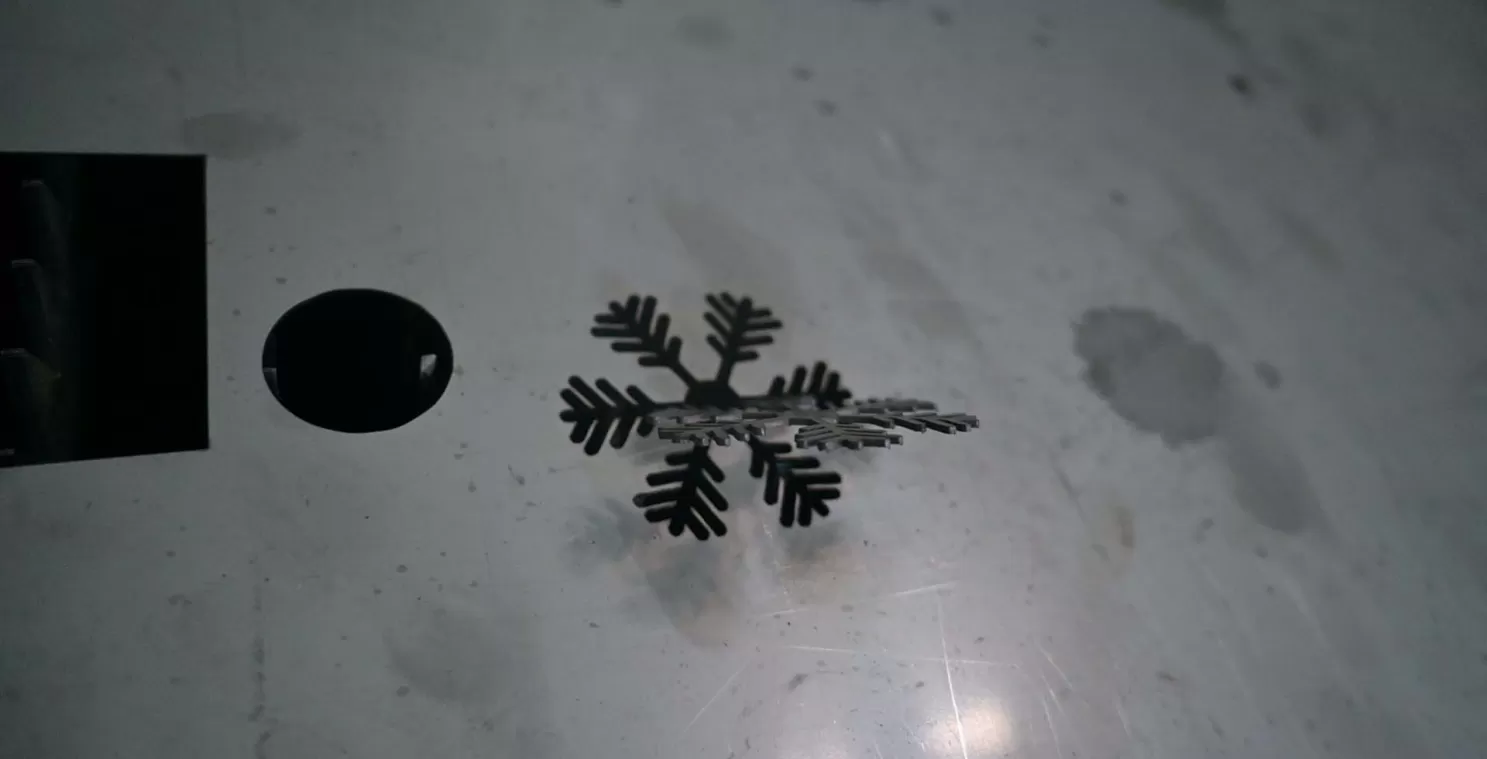

This small fiber laser cutter uses ball screw transmission, with high precision. It's is the best choice for making small metal parts, metal ornament designing and so on.
Floor Plan
